$745.00
4K resolution

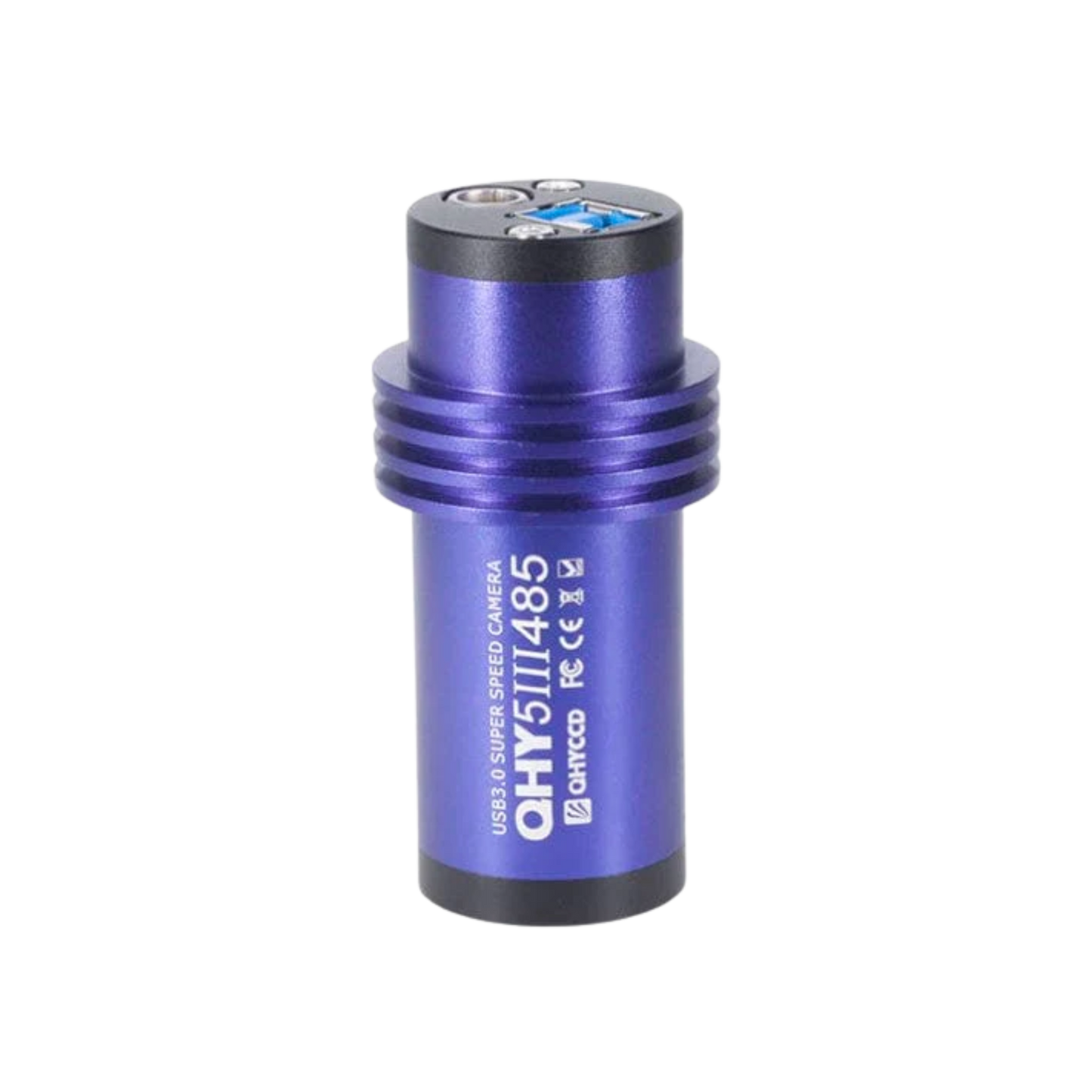

The QHY5III485C uses Sony's new IMX485, backilluminated, 8.4 megapixel color CMOS sensor with an array of 3864 x 2180 pixels at 2.9um. With USB 3.0 interface, the full frame rate of 44 FPS at 8-bits or 18.5 FPS at 16-bits. Smaller regions of interest will yield even faster frame rates.
16:9 resolution - More convenient video output
The resolution of QHY5III485C is 16:9, which is equivalent to the mainstream video output ratio. With the native high resolution, 485C can play a special role in recording astronomical video and astronomical science live broadcast.
DDR built-in image buffer
QHY5III485C is specially equipped with 128MB DDR bulit-in image buffer. In non-video output mode, DDR built-in buffer can effectively relieve the transmission pressure brought by high-resolution large data volume and reduce information loss.
Multiple Functions
The QHY5III485C standard package includes a 2.5mm Fisheye lens that converts the planetary camera into a high-resolution, 8.4 Megapixel All Sky camera with 180-degree field of view.
| Model | QHY5III458C |
| CMOS Sensor | SONY IMX485 CMOS |
| Pixel Size | 2.9um x 2.9um |
| Effective Pixel Area | 3864 x 2180 |
| Effective Pixels | 8.4 Megapixels |
| Full Well | 12,236e- |
| Readout Noise | 1.0e- to 2.4e- Standard Mode, 0.6e- to 1.09e- sHGC Mode |
| AD Sample Depth | 8-bit/12-bit (output as 8-bit and 16-bit) |
| Sensor Size | Typical 1/1.2 inch |
| Full Frame Rate | Full Resolution 44 FPS @ 8-bit 18.5 FPS @ 16-bit (USB 3.0 Port) |
| ROI Frame Rate | 78.5 FPS @ 1200 lines 87 FPS @ 1080 lines 91.5 FPS @ 1024 lines 97.5 FPS @ 960 lines 121 FPS @ 768 lines 190 FPS @ 480 lines |
| Exposure Time Rangge | 10us - 300sec |
| Shutter Type | Electronic Rolling Shutter |
| Computer Interface | USB3.0 |
| Guide Port | Yes |
| Telescope Interface | 1.25-inch with CS mount threads (C-mount adapter included) |
| Optical Window | UV/IR cut and AR coated |
